Motorola APX™ 4500 Enhanced P25 Mobile Radio

P25 Operation | Single Band Operation | O2 Control Head Support | Affordable P25 Solution

Uncompromising Performance. Effective Response.

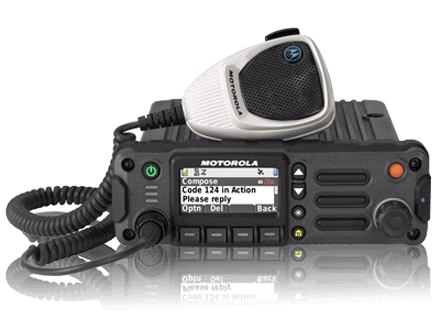

Motorola APX4500
You need a P25 radio to communicate and collaborate effectively with other P25 radio users. And, you need the performance and reliability of an APX™ radio. That is why we built the APX 4500 single-band mobile radio.

Everyone has something to like with the APX 4500. We’ve paired it with our rugged O2 Control Head for confident, reliable radio communication that can stand up to everyday use.

The compact form factor simplifies vehicle installation. Integrated hardware encryption protects your mission-critical communication. Impact detection automatically alerts dispatch to keep its users safer and integrated Wi-Fi helps to keep you current with fast and easy software updates. Integrated Bluetooth provides wireless communication with Commercial off the shelf (COTS) Bluetooth accessories.

Improve your operational efficiency with the performance and reliability of the APX 4500 mobile radio

For APX 4500 on UHF Range 2 click here

Respond With Confidence
When out in the field, you face all types of conditions. Your radio shouldn’t hold you back. Whether it be getting caught in a storm or undergoing extreme temperature shock, you can remain confident in the APX 4500 and know that it won’t let you down in the moments that matter.

Motorola APX 4500 Features and Benefits

General Specifications
Channel Capacity: 512 standard, expandable to 1,000 channels
Encryption Algorithms: ADP, 256-bit AES

Operating Modes
Digital Trunking: 9600 Baud APCO P25 Phase 1 FDMA and Phase 2 TDMA
Analog Trunking: 3600 Baud SmartNet®, SmartZone®, Omnilink
Digital Conventional: APCO 25
Analog Conventional: Analog MDC 1200, Quik Call II System Configurations

Management
Customer Programming Software (CPS)
Radio Management
Over-the-air Programming (OTAP)

Integrated Wi-Fi And Data Connectivity
Wi-Fi (2.4GHz), 802.11 a/n/ac (5GHz) with up to 20 Wi-Fi networks provisioned in the radio
Data Modem Tethering
ASTRO 25 Integrated Voice and Data
Enhanced Data
Integrated GPS/GLONASS for Outdoor Location Tracking
Mission Critical Geofence
Personnel Accountability
Bluetooth (Version 4.2)

Security
P25 Authentication
Software Key
Single-key ADP Encryption
Multikey for 128 keys

Systems Supported

Trunking standards supported:

  • Clear or digital encrypted ASTRO®25 Trunked Operation
  • Capable of SmartZone®, SmartZone Omnilink, SmartNet®
  • Capable of P25 Phase 2 - TDMA

Analog MDC-1200 and Digital APCO P25 Conventional

Motorola APX 4500 Models

Low/Mid Power
M22URS9PW1N 700/800 MHz (763-870 MHz), Low/Mid Power, 512 Channels
M22KSS9PW1N VHF (136-174 MHz), Low/Mid Power, 512 Channels
M22QSS9PW1N UHF Range 1 (380-470 MHz), Low/Mid Power, 512 Channels
M22WRS9PW1N 900 MHz (896-940 MHz), Low/Mid Power, 512 Channels

Motorola APX 4500 Accessories

Whether you use your radio in your vehicle, on your motorcycle or at your desk, you need to know that every word is communicated and every message is heard. Every APX mobile accessory has been designed and thoroughly tested to provide the same high level of performance you expect from your radio. Many accessories from Motorola XTL radios that use O5 and O3 control heads can be reused - maximizing your investment while you maintain the latest technology.

Unique accessories such as the IMPRES™ visor microphone allow hands-free communication, while IMPRES technology helps ensure your voice is heard regardless of how closely you are speaking into the microphone or how much wind or road noise is in the background.

Motorola accessories deliver maximum flexibility without compromising voice and data performance.

The complete line includes:

  • Microphones
  • Speakers
  • Sirens and Public Address Kits
  • Control Station Accessories
  • Remote Mount Cables
  • Antennas

View the Motorola Original Accessories for the Motorola APX 4500
