Repeaters

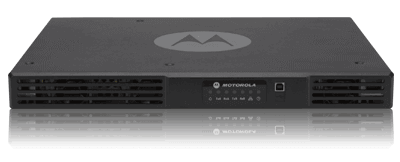

Motorola SLR 5000 Repeater

High Performance, High Reliability with All the Features

The SLR 5000 Series represents a huge leap forward in design and technology. Based on a wealth of field experience, customer feedback and technological innovation, the product delivers outstanding performance and efficiency for your business two-way radio system. From rock-solid reliability to clever touches like an integrated battery charger, the SLR 5000 Series is truly the next generation in repeaters.

Product Features:

• 1-50W transmit power
• Integrated 3A battery charger
• Supports Two Simultaneous Voice Paths in Digital TDMA Mode
• Operates in Analog or Digital Mode
• Supports all MOTOTRBO system architectures
• Remote Diagnostics Alarms and Controls (RDAC)
• 100% Continuous Duty Cycle
• Internal Power Supply
• Rack Mountable
• Wall-mount Kits Sold Separately
• Automated Battery Back-up (battery sold separately)

Systems Supported:

Conventional (Analog and Digital), IP Site Connect, Capacity Plus

Models Available:

AAR10JCGANQ1AN 136-174 MHz, 1-50 Watts
AAR10QCGANQ1AN 403-470 MHz, 1-50 Watts
AAR10TCGANQ1AN 450-512 MHz, 1-50 Watts

Motorola SLR 5000 Repeater Downloads

MOTOTRBO SLR 5000 Repeater Spec Sheet

SLR 8000 Series Repeater

Built on the slim next-generation repeater platform, this repeater supports up to 100 W continuous-duty operation, with high sensitivity for exceptional coverage. The modular design keeps reliability high while allowing for configurable options.

Product Features:

100% Continuous Duty at 100 watts, very low power consumption, IP interface allows you to build applications and consoles directly on your system, efficient modular design only requires 2U of rack space, and options for an internal preselector amplifier and antenna relay module, offering you a true one-box installation.

Systems Supported:

Conventional (Analog and Digital), IP Site Connect, Capacity Plus

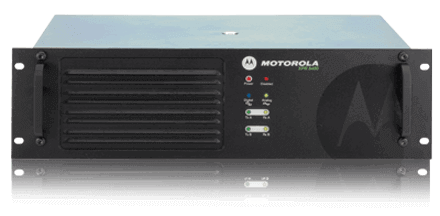

Motorola XPR 8400 Repeater

Switch between Analog and Digital Seamlessly

Maximize the performance of your MOTOTRBO system with the XPR 8400 repeater. Available in UHF and VHF frequency bands, the XPR 8400 utilizes dynamic mixed mode capability to ease migration by automatically switching between analog and digital mode. XPR 8400 supports two simultaneous voice or data paths in digital mode, doubling capacity without additional equipment.

Product Features:

• 100% continuous duty at 40W/UHF, 45W/VHF and 35W/800 MHz.
• Supports two simultaneous voice or data paths in digital TDMA mode.
• Integrated power supply with connector for optional external DC battery backup.
• Operates in analog or digital mode - bright, clear, colored LEDs indicate mode.
• LEDs clearly indicate transmit and receive modes in both channel slots.
• Rack- or wall-mountable - compatible with desktop housing as well.
• Sturdy handles make installation and handling easier.

Systems Supported:

Analog Conventional, Digital Conventional, IP Site Connect, Capacity Plus

Models Available:

AAM27TRR9JA7BN 450-512MHz, 1-40 Watts

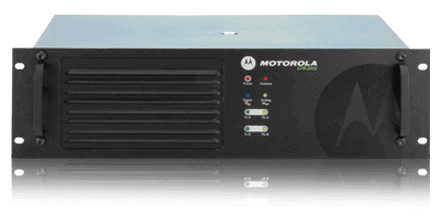

Motorola XPR 8380 Repeater

Switch between Analog and Digital Seamlessly

Maximize the performance of your MOTOTRBO system with the XPR 8380 repeater. Available in 800 / 900 MHz frequency bands, the XPR 8380 utilizes dynamic mixed mode capability to ease migration by automatically switching between analog and digital mode. XPR 8380 supports two simultaneous voice or data paths in digital mode, doubling capacity without additional equipment.

Product Features:

• 100% continuous duty at 40W/UHF, 45W/VHF and 35W/800 MHz.
• Supports two simultaneous voice or data paths in digital TDMA mode.
• Integrated power supply with connector for optional external DC battery backup.
• Operates in analog or digital mode - bright, clear, colored LEDs indicate mode.
• LEDs clearly indicate transmit and receive modes in both channel slots.
• Rack- or wall-mountable - compatible with desktop housing as well.
• Sturdy handles make installation and handling easier.

Systems Supported:

Analog Conventional, Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus.

Models Available:

AAM27UMR9JA7AN 806-870/896-941MHz, 10-35 Watts
